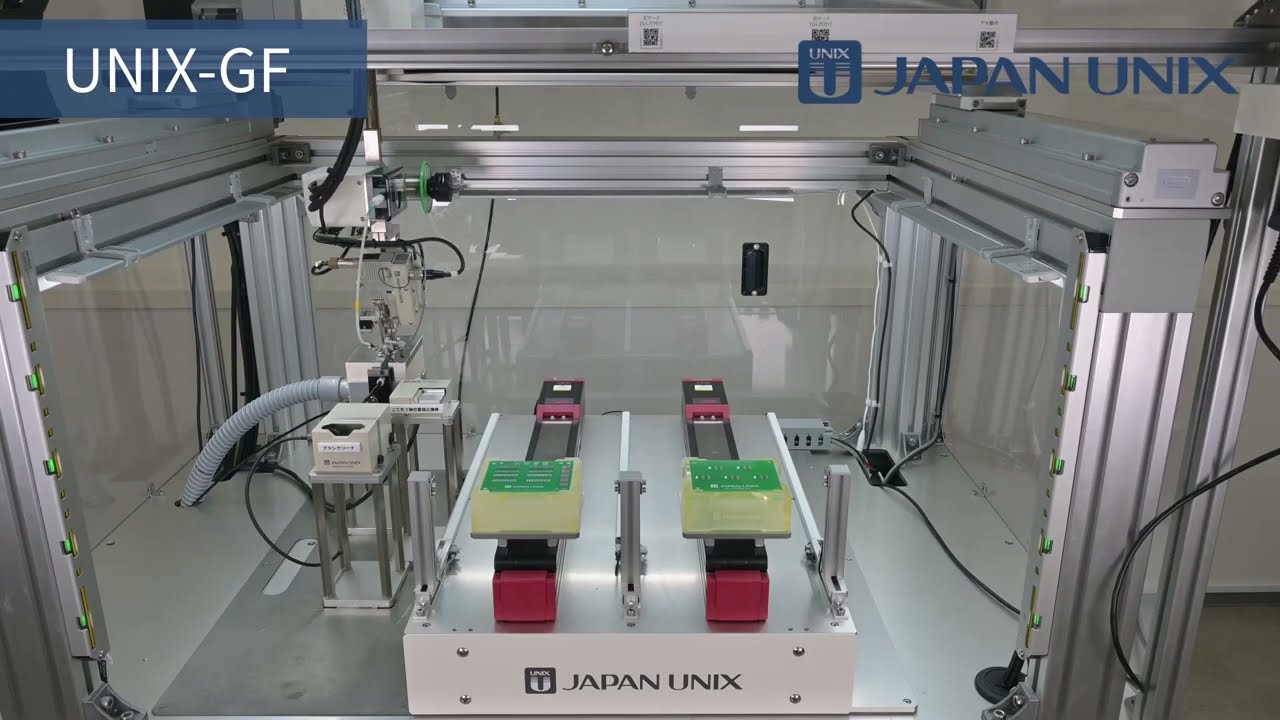

Gantry Soldering Robot
Evolving into a flexible gantry platform
while keeping the usability of the best-selling desktop robot.
UNIX-GF series has evolved into a flexible gantry-type soldering platform.
Ideal for introduction into production lines and for automated soldering to large boards.
Feature
![](/wp/wp-content/uploads/2023/04/gf_inline_img.jpg)
Equipped with 4-axis/3-axis gantry robot
The inline robot can operate with the same intuitive teaching method as the DF series.
- Follows the functions of the DF series of desktop automated soldering robots
- Feeder and optional units used in the desktop-type DF series can be used as is
- Compatible with both iron soldering and laser soldering methods
- Up to 2 additional axes can be added (option)
![](/wp/wp-content/uploads/2023/04/soldering_manager_gf_df.jpg)
Visualizing process management
Enhanced communication network functions for outputting and storing soldering-related data
- Real-time monitoring and record keeping of soldering information.
- External command control for editing and setting soldering conditions, etc.
Examples of applications for orthogonal soldering robots.
![](/wp/wp-content/uploads/2022/09/img_gf-series3.png)
Conveyor line
![](/wp/wp-content/uploads/2022/09/img_gf-series4.png)
Two stages
Standard Configuration
Common Equipments for Both Methods (iron tips/lasers)
![](/wp/wp-content/uploads/2023/04/gf_main_body.jpg)
Main Body of a Robot
![](/wp/wp-content/uploads/2023/04/gf_robot_controller.jpg)
Robot Controller
![](/wp/wp-content/uploads/2023/04/gf_soldering_controller.jpg)
Soldering Controller
![](/webroot/img/products/automation/multi-axes-soldering-robot/vertical/standard_solder_feeder.jpg)
Standard Feeder
*Choose either one.
![](/webroot/img/products/automation/multi-axes-soldering-robot/vertical/Clean_cut_solder_feeder_2.jpg)
Clean Cut Feeder
*Choose either one.
Iron Tip Soldering
![](/webroot/img/products/automation/multi-axes-soldering-robot/vertical/soldering_head_heater.jpg)
Soldering Head/Heater
![](/webroot/img/products/automation/multi-axes-soldering-robot/vertical/iron_tip_lock_on.jpg)
Lock-on Mechanism for Iron Tips
![](/webroot/img/products/automation/multi-axes-soldering-robot/vertical/UJC-214_cleaner_box.jpg)
Cleaner Box
UJC-214
*Choose either one.
![](/webroot/img/products/automation/multi-axes-soldering-robot/vertical/UJC-219_cleaner_box.jpg)
Cleaner Box
UJC-219
*Choose either one.
Laser Soldering
![](/webroot/img/products/automation/laser/uld-02/ULD-02-all-package.jpg)
Laser Soldering Controller Unit
![](/wp/wp-content/uploads/2023/04/h3_laser_head.jpg)
Laser Head
Option
Common Items for Both Methods (iron tips/lasers)
![](/webroot/img/products/automation/soldering_manager/Soldering_manager_logo.jpg)
Soldering Manager
![](/webroot/img/products/automation/multi-axes-soldering-robot/vertical/Vision_sensor_Image_correction.jpg)
Image Position Correction
Vision Sensors
![](/webroot/img/products/automation/multi-axes-soldering-robot/vertical/remaining_amount_sensor.jpg)
Solder Remain Level Sensor
![](/wp/wp-content/uploads/2023/04/gf_switch-box.jpg)
Switch Box
Iron Tip Soldering
![](/webroot/img/products/automation/multi-axes-soldering-robot/vertical/UNI-TESTER_Soldering_iron_tester.jpg)
Soldering Iron Tester
UNI-TESTER
![](/webroot/img/products/automation/multi-axes-soldering-robot/vertical/UJC-218_Brush_cleaner.jpg)
Brush Cleaner
![](/webroot/img/products/automation/multi-axes-soldering-robot/vertical/Three_axis_position_correction.jpg)
Tip Position Corrector
Laser Soldering
![](/wp/wp-content/uploads/2022/09/laser_Lock_on.jpg)
Lock-on Mechanism for Laser
![](/webroot/img/products/automation/laser/uld-02/laser_soldering_head-ULD-H3_ThermoPro.jpg)
Temperature Management and Control System
Thermo Pro™
Consumables (soldering tips)
![](/wp/wp-content/uploads/2022/09/img-2.png)
Select the suitable one from over 2,500 types
Selecting right soldering tip is the key for qualified outcomes.
The tip must be selected based on a variety of factors, such as circuit board material, components and their size.
Japan Unix has a wide range of high-performance iron tips developed for automation.
Manufacturer custom orders are also available for exclusive works.
![](/webroot/img/products/automation/700series/700V/section_3/warning.png)
*ATTENTION FOR COUNTERFEITS.
Counterfeit soldering tips are being found over the Internet and unauthorized dealers, etc., please be careful not to be deceived by such tactics.
More information
Reference Videos

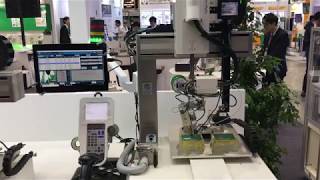

![Japan Unix 2019 @ Neocon Japan](https://img.youtube.com/vi/NmQ_Cmr7QlE/maxresdefault.jpg)
