- ・Supporting data export and external process control via LAN or COM port.
- ・Special monitoring software can remotely monitor operation status.
- ・The real-time monitoring such as temp. graph, operation status, errors can prevent defective products.
- ・Robots are controllable with connecting to PLC and with control commands.

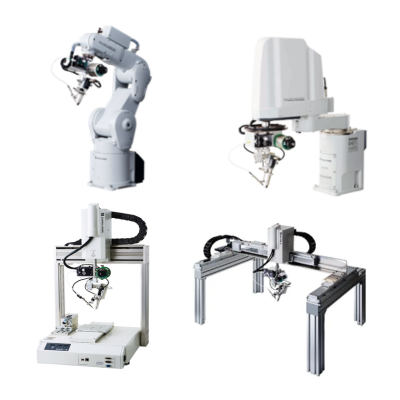

The new generation desktop soldering robot for Industry 4.0 and IoT.
UNIX-DF Series have improved its network function and robotic motion.
Three types, according to PCB size. These are also applicable and optimized for laser soldering.
It can connect with network, which can visualize each soldering process and result.
The additional two axes facilitate penetration angles or rotate PCB, which make difficult soldering component possible from now on.
-
UNIX-DF204S
Compact type
- ・Working area: 200mm×210mm
- ・New and improved heater
- ・LAN (Ethernet), COM port
- ・X,Y axis: 600mm/sec
- ・Z axis: 250mm/sec
- ・Separated soldering controller
-
UNIX-DF304S
Middle type
- ・Working area: 300mm×275mm
- ・New and improved heater
- ・LAN (Ethernet), COM port
- ・X,Y axis: 900mm/sec
- ・Z axis: 400mm/sec
- ・Built-in soldering controller
-
UNIX-DF404S
Wide type
- ・Working area: 400mm×365mm
- ・Supports M-size PCBs
- ・New and improved heater
- ・LAN (Ethernet), COM port
- ・X,Y axis: 900mm/sec
- ・Z axis: 400mm/sec
- ・Built-in soldering controller
Features
- ・New heater improves heating and soldering mechanism.
- ・Productivity is highly improved by increasing rigidity and process speed.
- ・Connect with network and visualize the soldering operation process in real time.
- ・Two additional axes enables complex PCB and components soldering easily.
- ・Fully correspondent to laser soldering system.
Laser soldering specification
-
UNIX-DF203L
-
UNIX-DF303L
-
UNIX-DF403L
OPTION
Achieve 1) Improved network functions for industry 4.0
Connecting to factory network and making operation visible in real time.
* The relationship between factory network and DF series.
PLC, LAN and hubs are as provided by customers.
Achieve 2) 3D soldering and MID (molded interconnect device)
Two additional axes enable complex PCB soldering easy and flexible.
* Two axes can be added to the work area.
- ・Two axes can be optionally added, up to six axes are available.
- ・External devices are integrally controllable with the batch operation of robot.
- ・Various motions such as component rotation, PCB reversal, head angles, rotation of cylindrical parts, cable suppression, etc.
- ・Space saving and easy to setup.

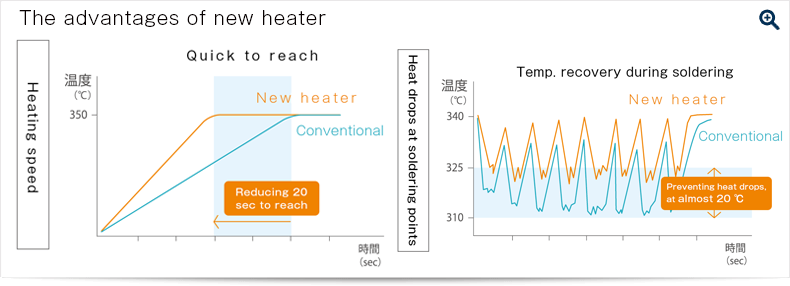

Achieve 3) The new heater highly improves productivity.
Higher accuracy and improved temperature characteristics.
- ・Much more accurate temperature measurement has been achieved by placing heat sensor at the tip of the tip.
- ・Quick temp. recovery achieves higher operational efficiency.

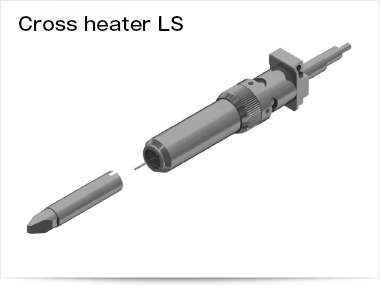

- ・The heater and the tip are separated and can be replaced individually.
- ・Poka Yoke function prevents to make mistakes of installing a soldering tip and its direction.
Easy to change program selection on the switch box
* The center switch can quickly change programs.
- ・One touch selector on the switch box
- ・Arbitrary programs are simply selectable and executed (2ch)
Achieve 4) For Industry 4.0. Data management of each soldering process*
By connecting DF monitoring software, various soldering processes such as temperature, program execution and so on are visualized and converted into numerical data.
For example, observing the temperature during soldering, if irregular temperature change or program execution occurred, the monitoring system captures their irregularity and can notify errors.
Furthermore, connecting to the Internet / intranet, the system can notify error and can send alert to the registered email. Such real-time observation enables you immediately respond to operation errors and defects.
Any data can be exported with CSV format. Various operational log data from each process can be useful for investigating and exploring for further productivity improvement.
Further advanced soldering management software “Soldering Manager” (paid version) is now available.
REFERENCE VIDEOS
Achieve 5) Managing invisible defect modes
UNI-TESTER compatible (optional)
In order to maintain stable soldering quality, not only measuring the tip temperature, but also measuring the tip leakage voltage and the ground resistance is important for process control.
The tip temperature instability affects the solder joint finish. Leakage and transient voltages can cause components’ internal damages. From the viewpoint of device protection, the resistance between the tip and ground must be measured and secured.
UNI-TESTER compatible with IEC-61191-1 (Ed3 / 2018) and IPC J-STD-001G can realize various measurements and automatic tip temperature offset at the same time.
STANDARD CONFIGURATION (contact soldering)
-
Onboard controller
Controls robot and
soldering operation. -
High Precision solder feeder
Easy to change
solder reel. -
*Patented
Clean-cut feeder
Reduces flux splatter and solder balls
-
*Patented
Lock-on mechanism
Ensures steady feeding position
and prevents slippage -
Iron tip cleaner
Air blower type
-
Heater and temp.
regulator for roboticsSpecial heater and temp.
regulator with CA sensor -
*Patented
Soldering head
Easy to replace tips
and heater within 1 minute. -
Teaching pendant
Easy control and
configuration
CONSUMABLES (soldering tips)
Select the suitable one from over 2,500 types
Selecting right soldering tip is the key for qualified outcomes.
The tip must be selected based on a variety of factors, such as circuit board material, components and their size.
Japan Unix has a wide range of high-performance iron tips developed for automation.
Manufacturer custom orders are also available for exclusive works.
*ATTENTION FOR COUNTERFEITS.
Counterfeit soldering tips are being found over the Internet and unauthorized dealers, etc., please be careful not to be deceived by such tactics.
ADD-ON OPTIONS
Combining our rich array of add-on functions to make things faster, shorter, better quality and accuracy.
-
Lock-on Mechanism
Prevents the feeding slippage
-
Clean Cut Feeder
Significantly reduces flux spatter and solder balls
-
Tip Position Corrector
Automatically adjusts soldering position
-
High Precision Feeder
Supports ultra-fine soldering
-
Laser Unit
Non-contact soldering using laser
3 Available Methods
Iron tips
Laser
Ultrasonic
– The most mature soldering method, with hundreds years history –
Among all kinds of soldering methods, iron tip is the technique with the longest history, and is also technically the most well established. It was mainly done manually by soldering operators, but robots have rapidly advanced its automation and rationalization in recent years.
READ MORE– The newest soldering method, now gaining the world’s attention –
Laser soldering is garnering attention as a new method. However, the heat application principle and other aspects differ from tip soldering. Therefore, tip soldering cannot be simply replaced.
Caution is needed, because a laser’s benefits might be lost unless it is properly used with knowledge of laser soldering’s characteristics.
READ MORE-Ultrasonic turns conventional wisdom upside down. Soldering even on glass or ceramics-
Conventional soldering basically involves bonding solder (tin) with a metallic substrate. Ultrasonic is an advanced technique that enables solder to bond with glass or non-metallic materials.
