Desktop-Like Usability in a Gantry Platform for Inline Laser Soldering

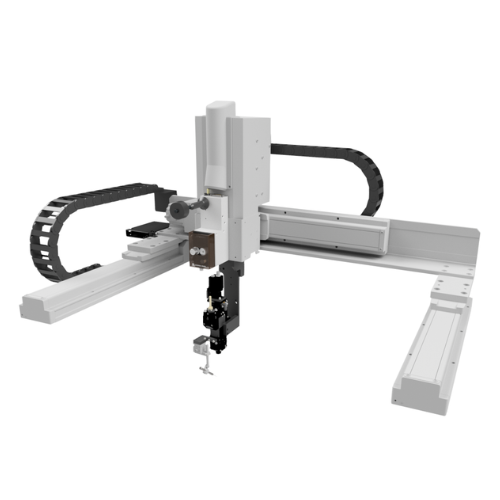

UNIX-GFL gantry laser soldering robot main body

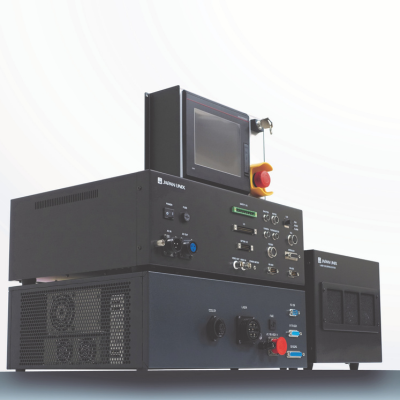

Laser soldering controller unit ULD-02 for gantry cell

UNIX-GFL is a gantry-type laser soldering robot built for inline production and larger workpieces, while keeping the intuitive operation style of desktop automation. Japan Unix combines stable gantry motion, laser process know-how, and monitoring/traceability concepts to support repeatable heat input and consistent joint quality in production cells.

Download PDF Request a Consultation

Capabilities of UNIX-GFL Inline Laser Soldering Automation

Inline Gantry Platform for Large Workpieces

A gantry structure provides a stable working envelope for larger boards and assemblies, making it suitable for in-line layouts where consistent positioning and repeatable laser access are required.

Desktop-Like Operation and Teaching Workflow

The platform is designed so operators can teach and run programs with an intuitive workflow familiar to desktop soldering automation, helping shorten setup and changeover in production cells.

Laser-Ready Process Control and Traceability

When used with monitoring/management tools, soldering conditions and logs can be recorded per product, supporting quality control, audits, and stable mass production.

Feature

Gantry Motion Built for Inline Production

The gantry platform supports stable motion control for in-line automation and larger workpieces. This helps maintain consistent irradiation positioning and working distance across production cycles.

UNIX-GFL feature image: soldering manager for gantry and desktop series

Visualizing Process Management for Production Cells

Enhanced network functions support output and storage of soldering-related data, helping monitor production status, respond to abnormalities, and improve governance on the line.

Learn more about Soldering Manager

UNIX-GFL feature image: laser process control concept

Laser-Ready Process Control and Monitoring

Japan Unix laser solutions emphasize not only joint formation, but also process control and visibility. GFL can be deployed as an inline laser soldering cell with condition management and traceability concepts in mind.
